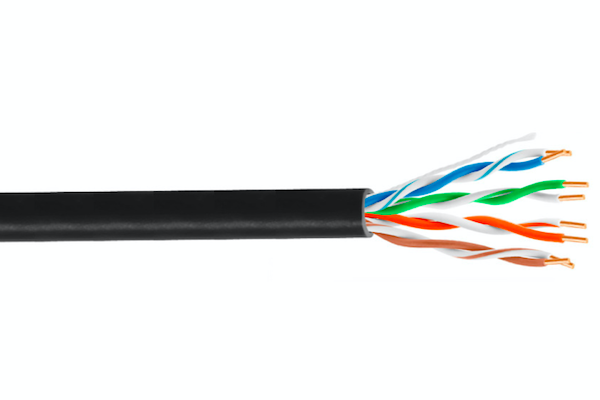

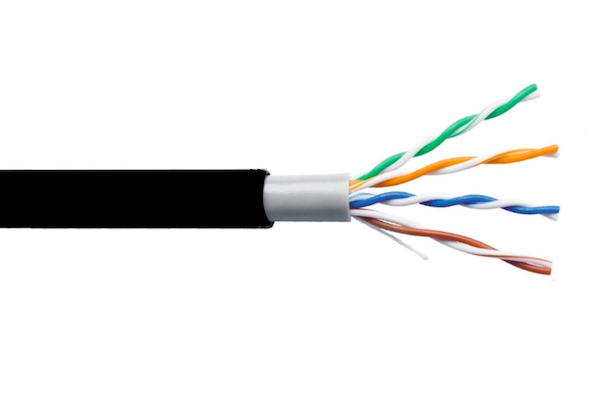

CAT5E U/UTP Lan Cable, 100 MHz, AWG 24, PE External

  • 1GBit Ethernet
  • 100 MHz transmission frequency
  • PoE Power over Ethernet support
  • Single jacket, Dual jacket

Technical Details

  • Complies with the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1.
  • CPR Class Fca
  • Conductor: Bare copper, solid AWG 24
  • Insulation: PE
  • Individual pair shielding: None
  • Overall shielding: None
  • Outer sheath: PE / PVC+PE
  • NVP: 69%
  • Color: Grey RAL7035

      Order Information

      Part Number

      Part Number Category Sheath Package Remark
      CLC-5UTP-PE305 Cat5E UTP PE Easypull box Single jacket
      CLC-5UTP-PED305 Cat5E UTP PE Easypull box Dual jacket
