Technical Details
- Category 6A 10G Base-T, 500 MHz
- ICategory 6 250 MHz, 1GBase-T
- Category 5E 100 MHz
- ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

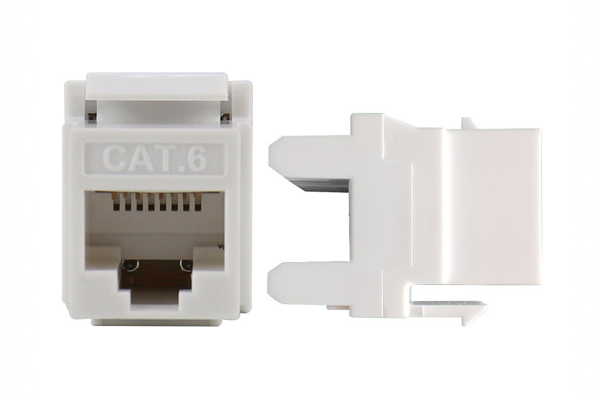

- RJ45 jack, 8P8C

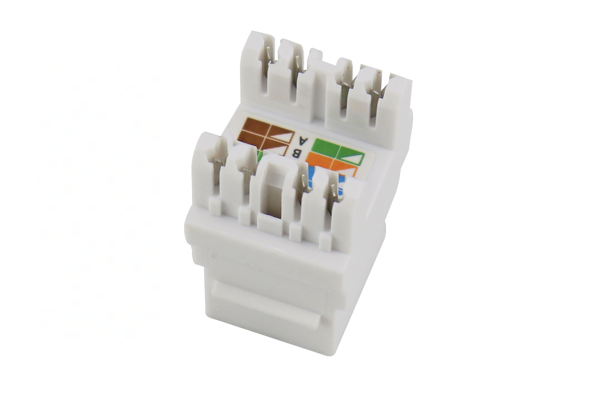

- IDC 90°
- Unshielded
- AWG-range: 26 … 22
- Material: ABS UL 94V-0
- Contact material: Phosphor bronze
- Contact coating: Nickel, gold-plated 0.5 µ
- Insertion force: Max. 30N
- Operating temperature range: -20 °C to +70 °C
- Mating cycles: ≥ 750
- Black, White, Blue color option
