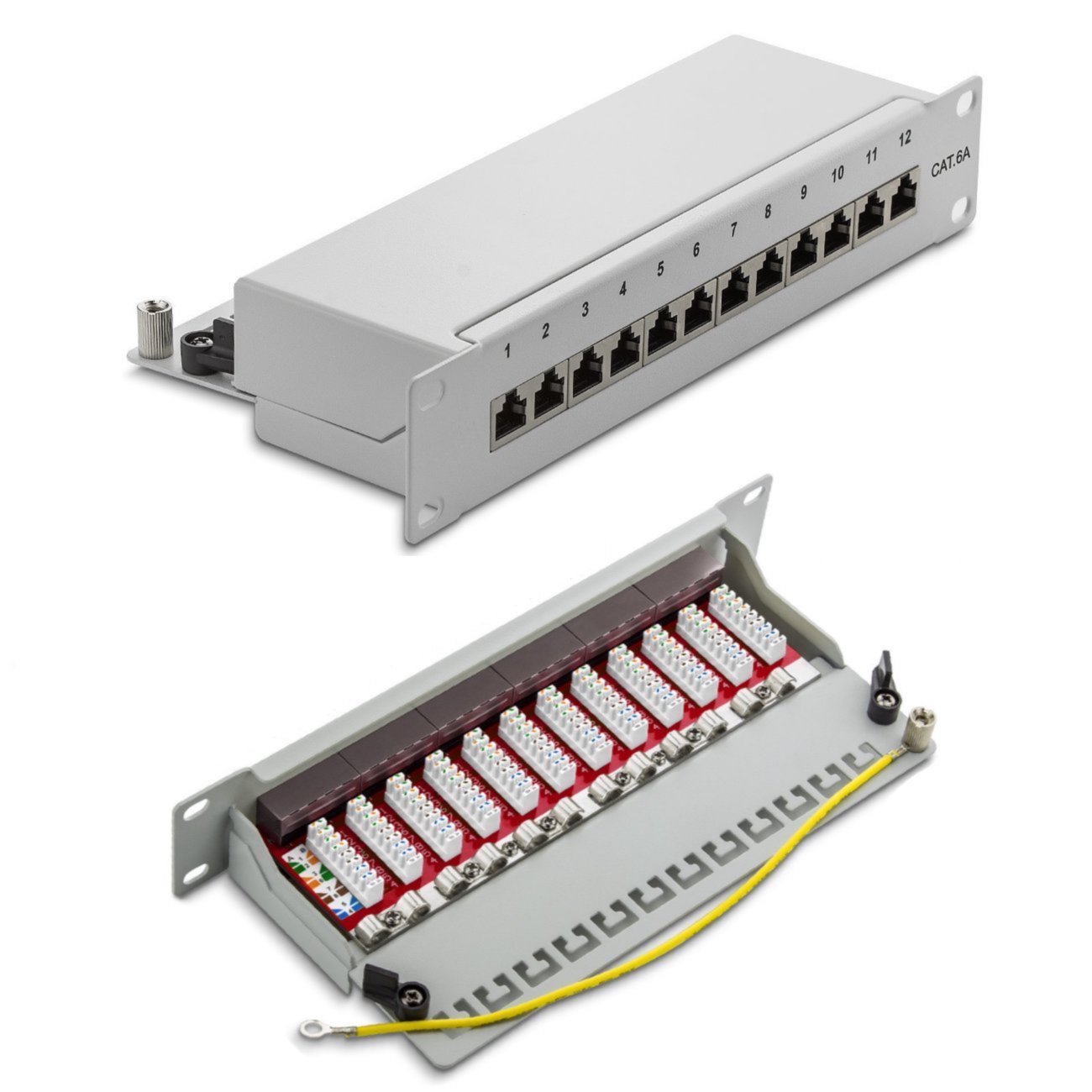

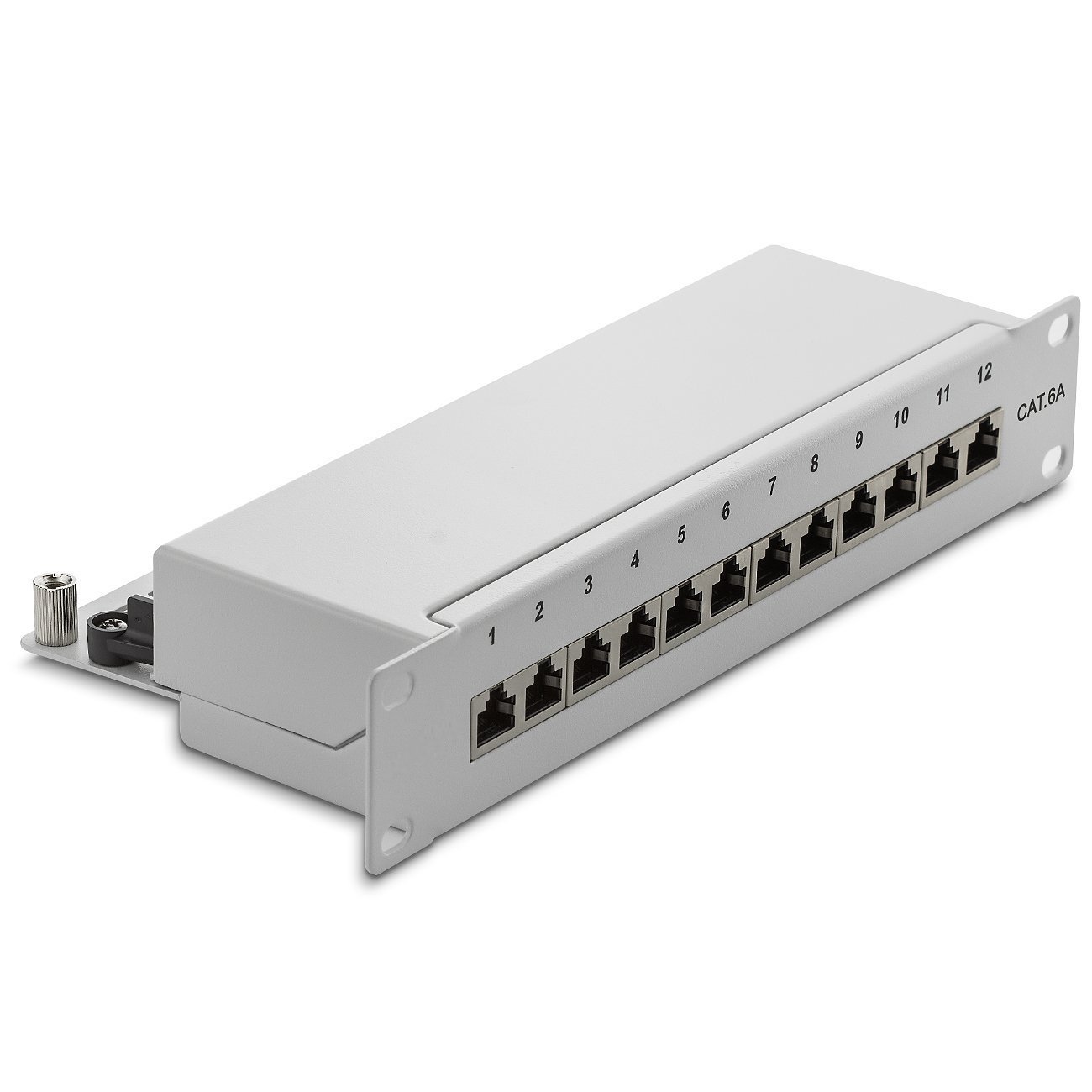

1U 10 Inch FTP Patch Panel, IDC Type

Technical Details

  • 1U 12 Port & 8 Port
  • 10 inch
  • Shielded
  • Cat6A Class Ea, Cat6 Class E, Cat5E Class D
  • Smart cable tie option
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5

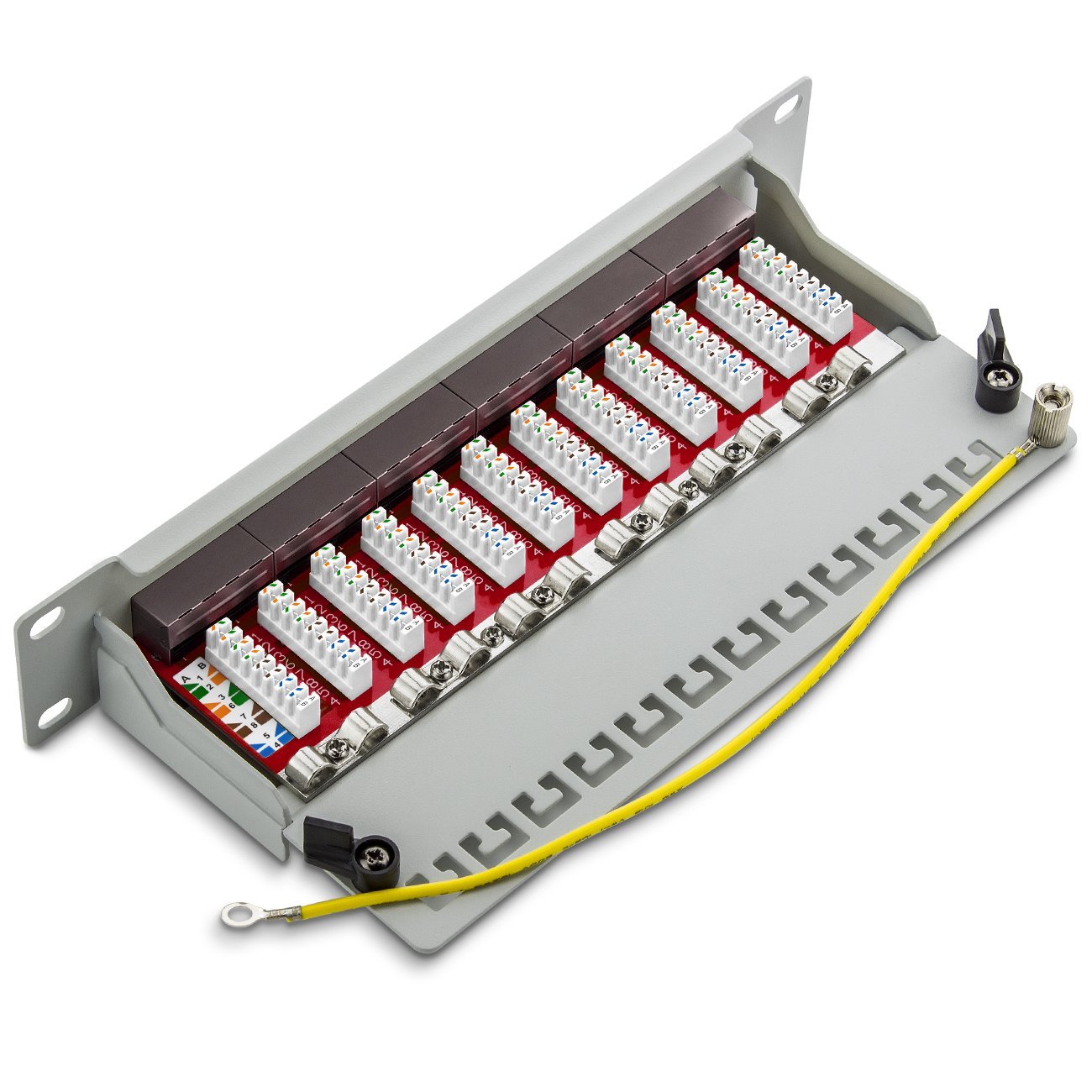

  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Color: Black / Grey

      Order Information

      Part Number

      Part Number Category Height Port Remark
      CIP-1S12S6A-10″ Cat6A STP 1U 12 10 inch
      CIP-1S12S6-10″ Cat6 STP 1U 12 10 inch
      CIP-1S12S5E-10″ Cat5E STP 1U 12 10 inch
      CIP-1S08S6A-10″ Cat6A STP 1U 8 10 inch
      CIP-1S08S6-10″ Cat6 STP 1U 8 10 inch
      CIP-1S08S5E-10″ Cat5E STP 1U 8 10 inch

      Package

      Download

      Not available now.

      Accessories List

      Not available now.
